Place of Origin: | China |
Nama merek: | AXNEW |
Sertifikasi: | CE/FCC/ROHS |
Model Number: | AXD-10OPN1P1-TV3 (VGA/DVI) |
Minimum Order Quantity: | 10 Pieces |
---|---|
Harga: | Depends on product and order quantity |
Packaging Details: | 5 Pcs /Carton with firm foam |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, Paypal, Western Union |
Supply Ability: | 2000 pieces/month |
Screen Size: | 10.4 inch | Pixel: | 800x600 |
---|---|---|---|
Contrast Ratio: | 500:1 | Brightness: | 400cd/m^2 |
Input signal: | VGA/DVI | Viewing Angle: | 160(H)/140(V) |
Monitor type: | Backlight | Application: | Gaming|Medical|outdoor|CCTV |
Cahaya Tinggi: | definisi tinggi LCD Monitor,lcd industri layar monitor sentuh |

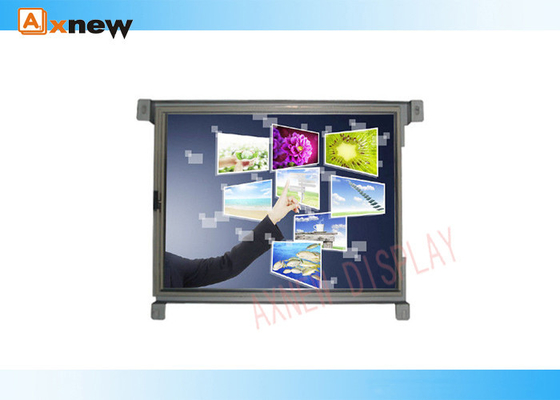

Buka Frame LED Backlight Monitor LCD 4: 3 resistif TFT Touch Screen
10.4 inch 400nits terbuka bingkai monitor dengan LED backlight, kehidupan penggunaan panjang dengan konsumsi rendah. 10.4 format 4: 3 industri monitor dengan layar sentuh resistif digunakan untuk peralatan otomatis, Stasiun Gas, Advertising, penjual sistem embedded, aplikasi ATM dll
Detail Cepat:
Model: AXD-10OPN1P3-TV3 | Ukuran layar: 10,4 '' |
Format layar: 4: 3 | Resolusi layar (pixel): 800x600 |
Contrast Ratio: 500: 1 | Brightness: 400cd / m ^ 2 |
Suhu penyimpanan: -30 ℃ ~ 80 ℃ | Sinyal input: VGA DVI |
Input daya: AC100 ~ 240 V / DC 12V | Status produk: Dalam produksi |
Fitur dan Keuntungan |
1.New dan Industri A kelas panel sempurna dengan suhu yang lebar |
2. papan kontrol industri mendukung menampilkan bekerja 24 jam |
3. profesional dan industri hardware dan bagian untuk menjamin kerjanya biasanya di lingkungan kasar |
4.Open desain bingkai untuk melindungi layar LCD, 400nits dengan LED backlight |
5. VGA DVI interface; resistif industri antarmuka panel sentuh USB |
6. 10,4 inci bingkai terbuka dipimpin monitor dengan layar sentuh untuk kontrol aplikasi, pemain iklan, kampus dan terminal industri dll |
tampilan Spesifikasi | |
pameran | 10.4 "LCD monitor warna TFT Sentuh |
Nama model | AXD-10OPN1P3-TV3 |
Active Area Display (mm) | 211,2 (H) x158.4 (V) |
Pixel pitch (mm) | 0.264 (H) x0.264 (V) |
Resolusi (Pixel) | SVGA (800x600) 16.2m Warna |
Brightness (CD / m ^ 2) | 400cd / m ^ 2 |
Contrast Ratio | 500: 1 |
Melihat Sudut (CR> = 10) | 160/140 |
Konsumsi daya | 4.52W khas, operasi normal |
Layar sentuh | Resistif; RS232 / USB (Optional) |
Kontrol OSD | Di sisi belakang |

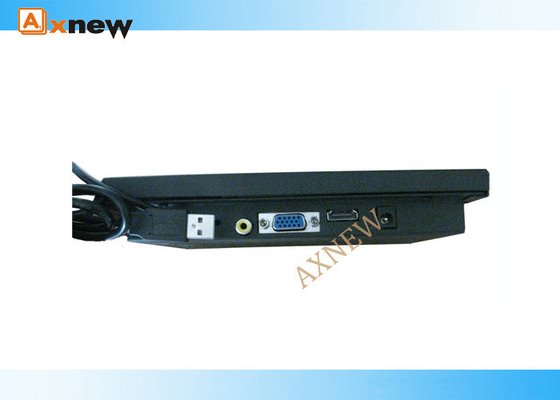

I / O Connectors | 1x12v, 1XVGA, DVI-D |
Input daya | DC 12V, 4A 48W |
Spesifikasi mekanik | |
Konstruksi | portal terbuka kasar dengan bahan-bahan perhiasan tepi |
Ukuran | 260 x 215x30 (mm) |
Mounting | Tertanam, tepi memperbaiki |
Sumber daya | AC 100 ~ 240V / 12V DC |
Spesifikasi lingkungan | |
Suhu Operasional | -20 ~ 70 ℃ |
Suhu penyimpanan | -30 ~ 80 ℃ |
penilaian | Memfasilitasi instalasi pembongkaran, portofolio yang solid |
Kemasan & Pengiriman
rincian Packing | 1x 10.4 inch monitor Touch Screen; Dikemas dalam 5 buah / karton dengan busa perlindungan aksesoris opsional: 1xVGA, kabel Power supply 1x, power adapter 1x |
Syarat pengiriman | 7- hari kerja untuk stok produk setelah menerima pembayaran; 15 hari kerja untuk produksi pesanan |
